Temperature Controller for Charcoal Smoker w/o blower

larger image

Model: SYL-1615

Starting at: $85.00

Please Choose:

Probe Option

Add to Cart:

Gold medal winner by amazingribs.com!

This PID controller is for controlling the temperature of charcoal smokers. It will regulate the on/off time interval of a 12 VDC blower to stabilize the temperature in the charcoal smoker. Developed by industrial control engineers, this controller utilizes an advanced AI (artificial intelligence) enhanced PID algorithm that can hold the cooking temperature within a tight range and prevent temperature overshooting from disturbances such as opening/closing the pit lid, wind, sun, and ambient temperature drops. It has a built-in solid state relay that can drive a 12 VDC operated blower up to 60CFM. It has a built-in buzzer that can be set for both low limit and high limit alarm. The system includes the controller, the AC to 12VDC adapter, and a K type thermocouple. Also included is a power plug that fits the control output jack. Users need to install the plug to a 12 VDC operated blower with adequate wind speed (5 CFM Fan is the most common for a small smoker).

Specifications:

AC adapter	100-240V, 50/60Hz input. 12 VDC, 1 Amp output
Power consumption	<2W
Sampling rate	4 samples/sec
Accuracy	0.2% full scale
Display range	-320~2400°F, or -200~1300°C
SSR output for Fan	12VDC, 1 Amp*
LED display	0.39 inch, red
Alarm	Two set points with buzzer sound
Sensor	K type thermocouple with 6 ft (2 meters) cable. TC-K6A: -300~900°F (-200~482 °C). TC-K3MM-C: -300~900°F (-200~482 °C) **
Control Mode	PID, On/off, Limit
Operating Temperature	0~160°F (-20 ~ 70°C)
Dimension	2.8x3.5x1.2" (70x90x30mm)

• Warranty: 1 year for controller and blower, 90 days for sensor
* Up to 3 Amp can be supplied when more powerful power supply is used
** Eight other types of thermocouple can also be accepted

Bottom View

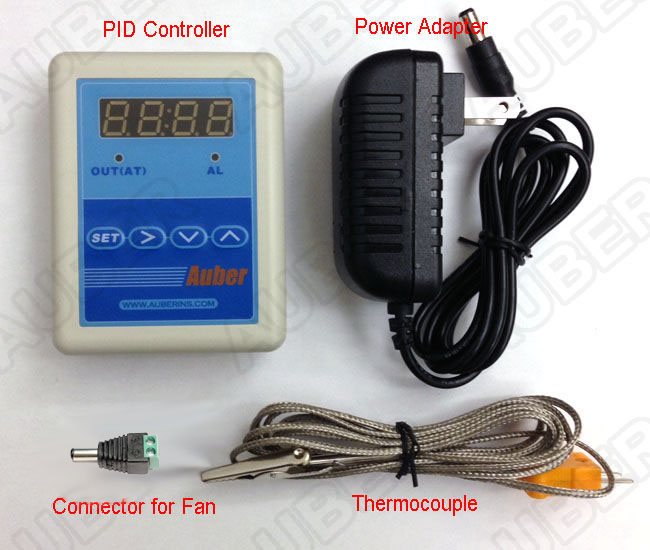

Included in the System (the sensor shown is TC-K6A. Probe TC-K3MM-C is also available).


TC-K6A	TC-K3MM-C

TC-K6H2

Click here for Quick Guide
Click here for Instruction Manual
Click here for common errors.

Note: we only carry adapters for two major plugs used world wide: NEMA1-15 and CEE7/16. For US and most international orders we will ship adapter for NEMA1-15 by default. For European continental countries we will ship adapter for CEE7/16. Customer in some countries may need to find a plug converter in local electronic store to make the adapter fit into their socket.
