DIN Rail Mounted Contactor

  • Model: DRCN

(image for) Ask a Question

Starting at: $16.99

Please Choose:

Contactor Option











Add to Cart:

Heavy duty DIN rail contactor released! See link here.

These contactors are to be mounted on DIN rails in control boxes. They are compact and are easy to mount. With other DIN rail compatible components, you can get a clean look wiring in your control box. These contactors are CE certified.

Following options are offered:

Two poles, 25A, 110V coil voltage
Two poles, 25A, 240V coil voltage
Two poles, 32A, 110V coil voltage
Two poles, 32A, 240V coil voltage
Two poles, 63A, 110V coil voltage
Two poles, 63A, 240V coil voltage
Four poles, 63A, 110V coil voltage
Four poles, 63A, 240V coil voltage

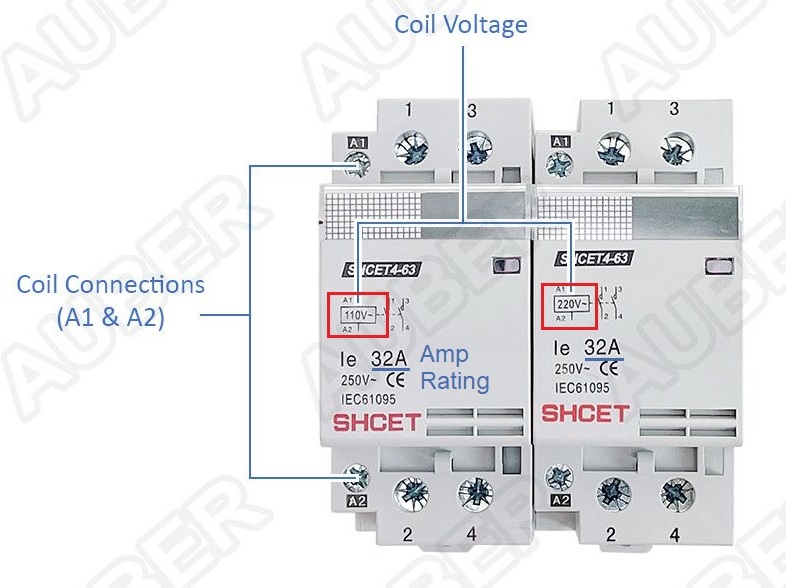

How to spot voil voltage for the contactor (Left: 110V coil, right: 220V coil).

Picture for 4P 63A contactors.


Note: Refurbished product is limited in stock here.

Specification:
CE certified
Standard: IEC 61095
Compatible DIN rail width: 35 mm
Contactor width: 18mm for 25A option, 36mm for 32A and 63A option
Coil voltage: 110V or 240V
Rated Operational Voltage (Ue) ~: 230V
Rated insulation voltage (Ui) ~: 500V
Rated operational current (Ie) (AC-7a): 25A/32A/63A
AC-7a (for slightly inductive loads) Operational power rating: 4kw
AC-7b (for motor-loads) Operational power rating: 1.2kw

Dimension(unit is in mm):

SHCET4-63, SHCET3-25
