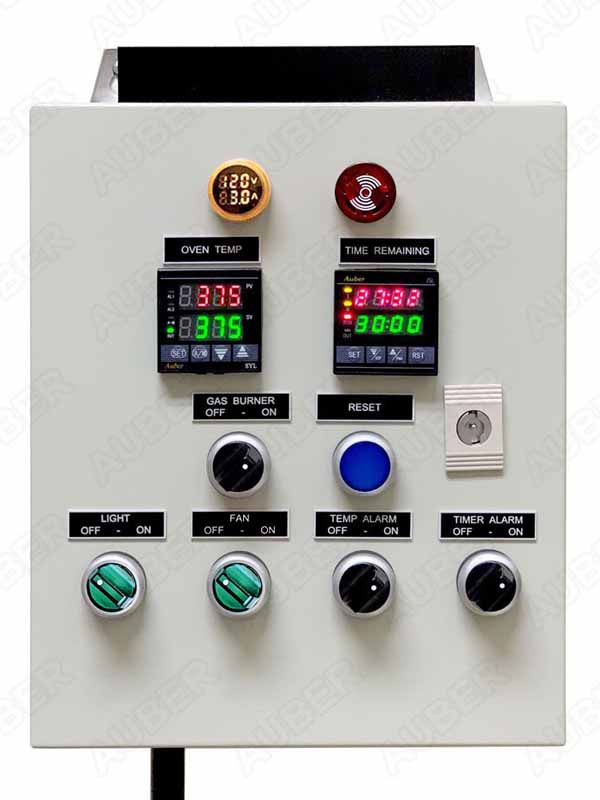

Control Panel for Gas Oven ft. Light & Fan, w/ a Separate Timer (120V Gas Burner)

New product released!

The GSO400S is a standard turn-key control panel for the gas fired oven with light and fan control. Utilizing a PID temp controller and an independent timer, this panel can show set temp, run temp, set time and run time at the same time. To reset the timer and start another batch, press the blue reset button momentarily. During the batch, one can use a manual switch to turn ON/OFF the burner if needed. A yellow 2-in-1 voltmeter & ammeter shows the system power status. The alarm buzzer is used for both temp alarm and finishing alarm. One can mute either alarm by its assigned mute switch.

Feature comparison between  GSO203S and GSO400S
1. For GSO203S, the PID controller has a built-in timer feature. By default, this meter will show temp reading on the top and timer on the bottom. You can start the timer automatically, once the reading temp reaches your set point. The timer function can also shut off the burner when time is up.
2. For GSO400S, it has one independent timer. So this panel can show both your reading temp, set temp and timer info at the same time. You need to manually start the timer. But once time is up, the timer can still shut off the burner.
3. GSO203S has one buzzer and  one alarm mute switch. It can be used to mute both temp alarm and timer alarm at the same time. GSO400S has one buzzer and two alarm mute switches. Users can manually mute either the temp alarm or timer alarm.

• 12x10x8" powder coated wall-mount enclosure with complete knockouts.
• Dual-line display PID controller.
• Dual-Line general purpose timer.
• 22mm switches for intuitive operation.
• One flashing buzzer and two alarm mute switches (one for temp alarm and another for timer alarm).
• Blue illuminated push button for resetting timer.
• Green illuminated push button for light and fan control.
• Mini 2-in-1 Volt and Amp meter for displaying system power level.
• Oven temperature probe w/ mounting screws (both the sensor and cable are rated for 900 º F).
• 1/2 inch EMT connector for output connection.
• Strain Relief Power Cord Connector for hard-wiring the power line.
• Side-mount breaker for overcurrent protection.
• US seller & US support team. This control panel is designed and manufactured by Auber Instruments. Copyright © Auber Instruments.

• Please provide your gas burner's brand and model number in the text box above. If you don't know, please enter "None" and email us a picture of your burner's specification. We may email you back for questions.
• Recommended gas burner: Carlin EZGas Pro, Carlin 201
• The control panel is designed for North America 120V AC power lines that require three line power connections (Hot line, Neutral and Ground). Please verify your power supply before purchase.
• For a KIT kit version of this panel, please check here.
• The gas burner is not included. If you need the panel for 12V, 24V or 240V gas burners, please contact us before purchase.
• The default sensor cable length is 6 ft (2m). An optional longer cable length of 11 ft (3.5m) is also available. If you need a longer sensor cable, please contact us.
• Lead time is about 2-3 business days.
• Protection plan for this kit is available here.

Bottom View (enlarge photo to see the knockouts)



Click here for instruction manual of SYL-2342.
Click here for instruction manual of JSL-74.
