DIN Rail Power Distribution Block 80A, UL Listed

larger image

Model: DRDB80A

$10.50

Add to Cart:

This DIN Rail power distribution block has an input voltage of 600V and an output current of 80A. It is designed for 35mm DIN Rail mounting or screw mounting. The modular design allows versatile building of power blocks single pole, two pole, three pole or four pole.

Note: 125A block is available here.

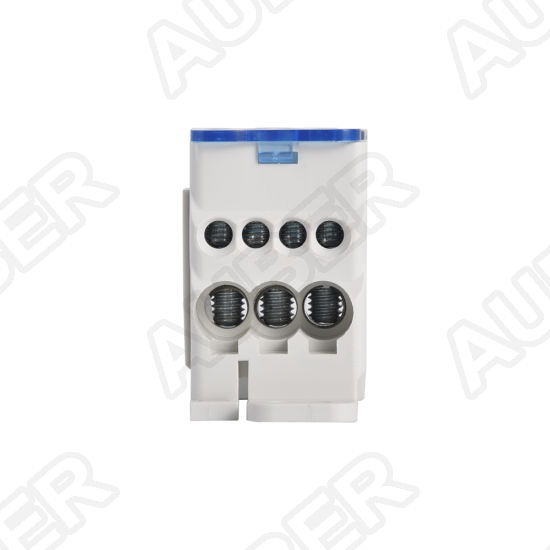

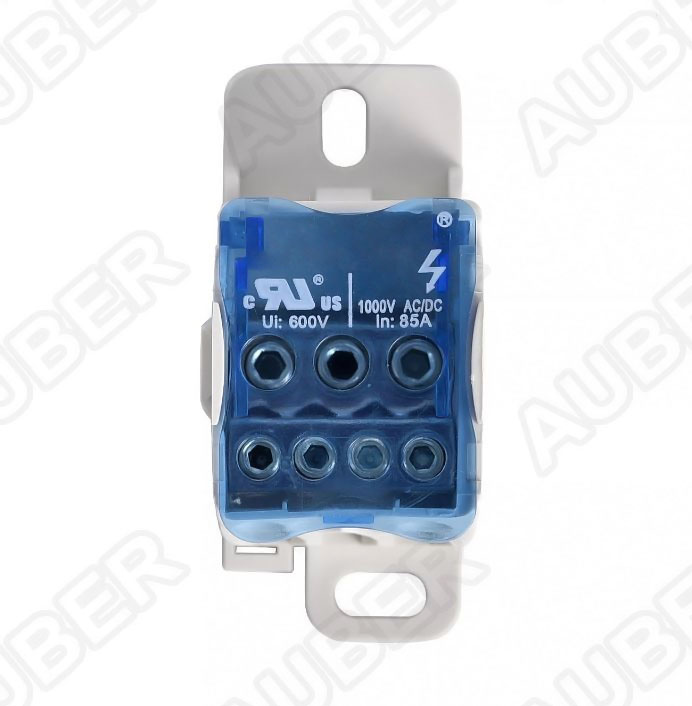

Top View	Front View

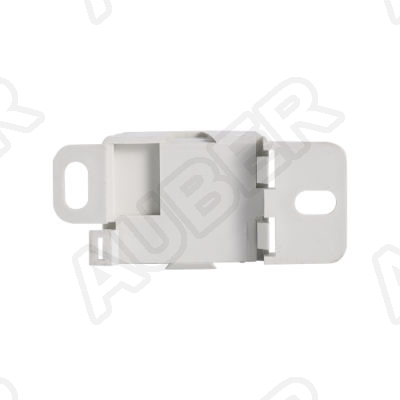

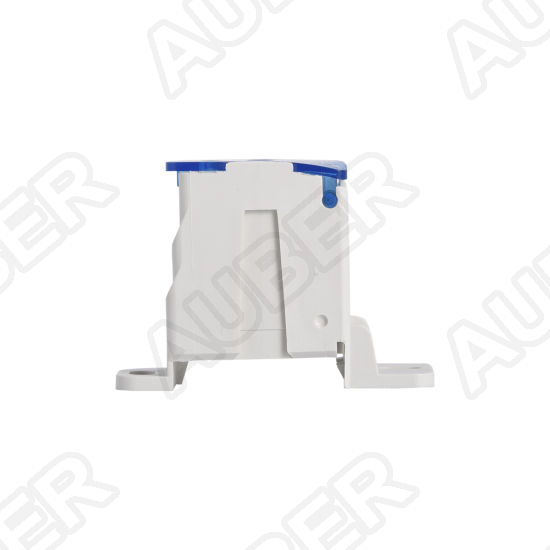

Side View	Bottom View

Features:
Halogen Free
IP20 protection against electric shock
95% fill ratio
RoHS compliant
Plastic cover is hinged and removable

Technical Data:

Max Current Rating, IEC	80A
Max Current Rating, UL/CSA	85A
Short Term Withstand Current (Icw) 1s	3 kA
Peak Short Circuit Current (Ipk)	22 kA
Short Circuit Current Rating (SCCR)	100 kA
Max Working Voltage, IEC (Ui)	1,000 VAC/DC
Max Working Voltage, UL (Vin)	600 V
Number of Inputs	1
Input Wire Size (Compact Stranded Wire)	6 – 16 mm^2
Input Wire AWG	#16 – #4
Number of Outputs	6
Output Wire Size (Compact Stranded Wire)	(2) 2,5 - 16 mm^2 (4) 2,5 - 6 mm^2
Output Wire Size (Stranded Wire w/ Ferrule)	(2) 2,5 - 16 mm^2 (4) 2,5 - 6 mm^2
Output Wire AWG	(2) #16 - #4 (4) #16 - #8
Number of Poles	1
Certificates	UL, CE, RoHS
